Description
Tenga en cuenta que esta cámara para salpicadero no es independiente, debe estar conectada a un sistema Android o Carplay Box.

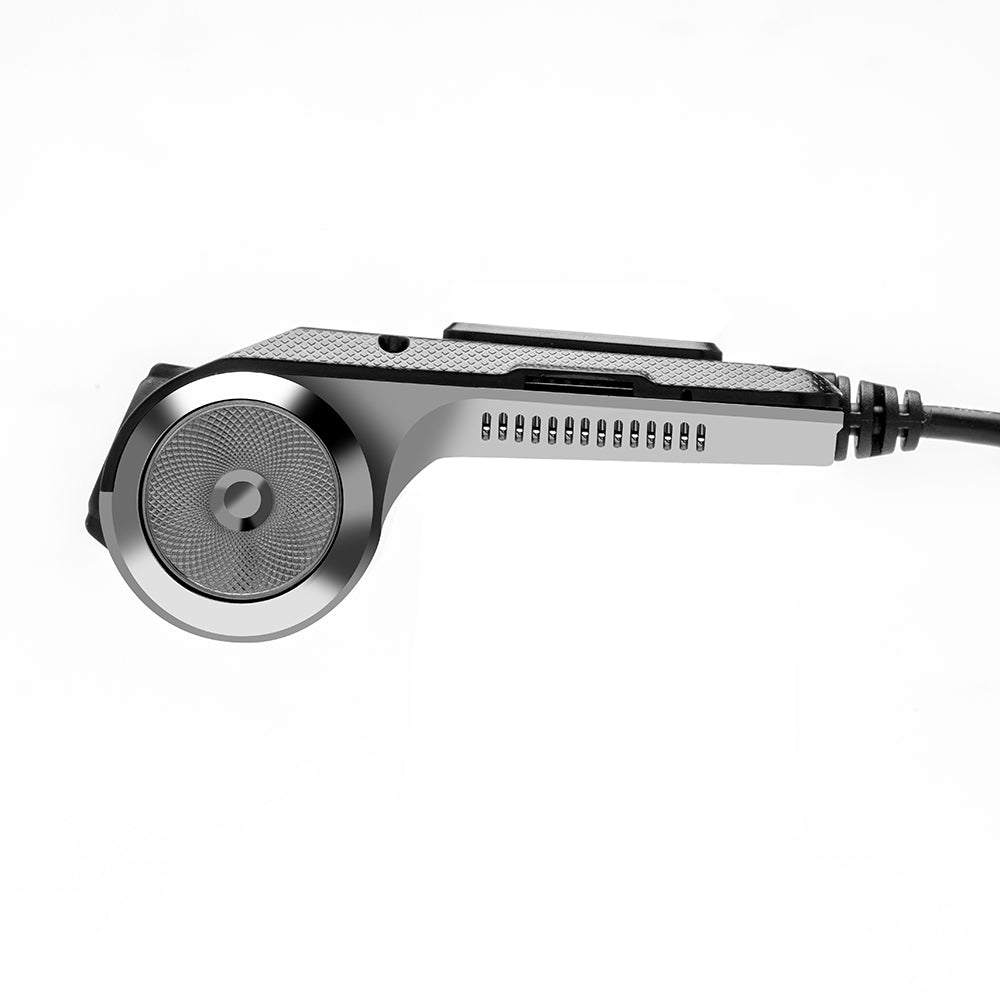

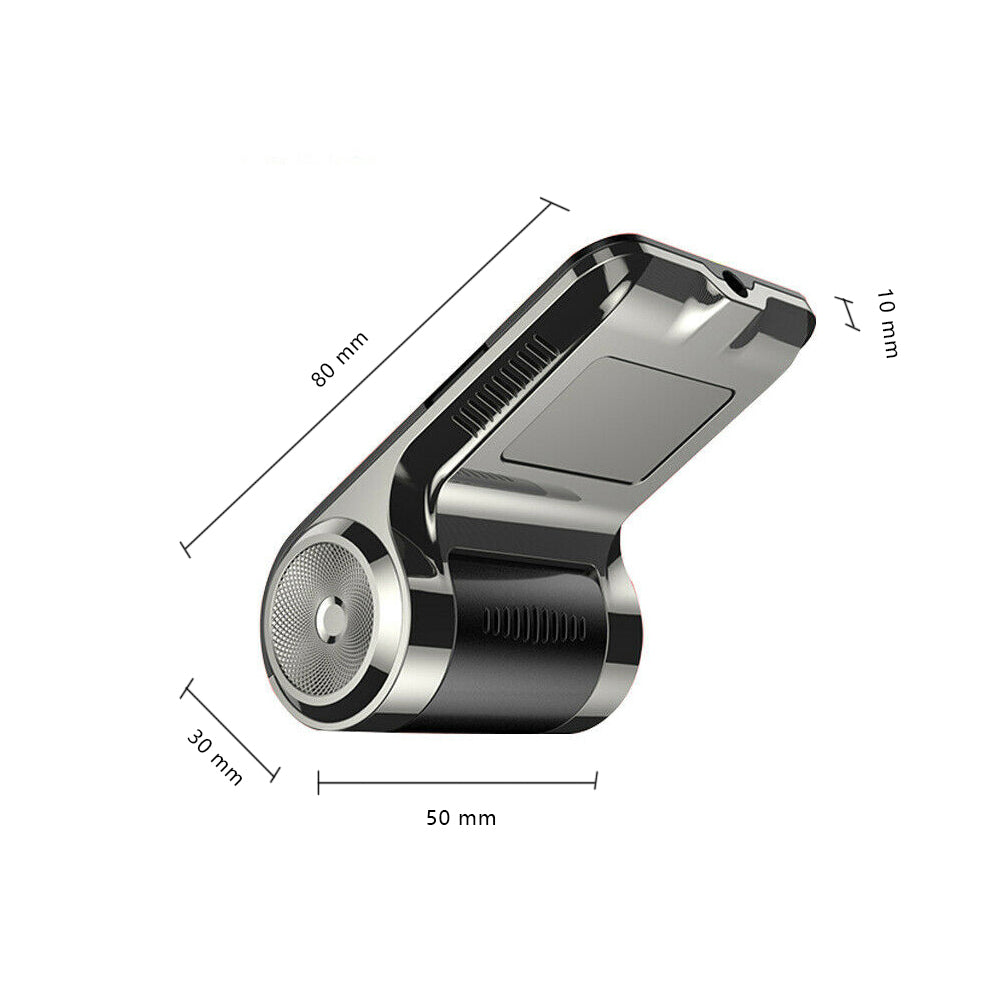

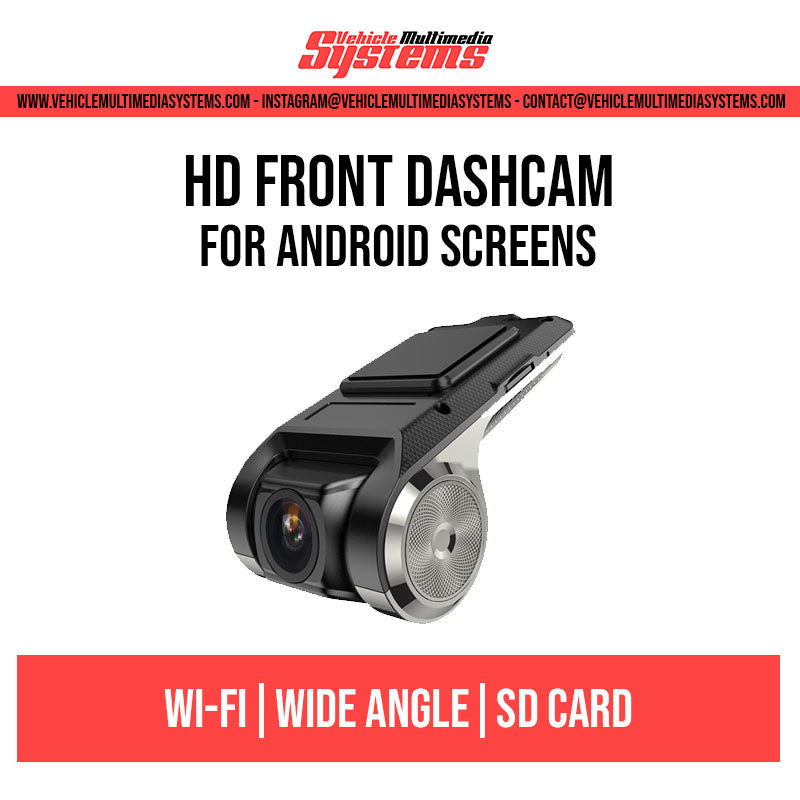

La cámara frontal para salpicadero ADAS HD es una excelente opción para los conductores que buscan una cobertura completa y conocimiento mientras están en la carretera. Con su cámara frontal para salpicadero HD y una práctica tarjeta SD de 15/32 GB, este dispositivo está equipado con funciones de Wi-Fi y monitoreo, lo que le brinda tranquilidad incluso cuando no está en su automóvil.
Características:
- ADAS hace que la conducción sea más segura: los sistemas de alarma de conducción avanzados (LDWS/FCWS) son sistemas de alarma útiles para mantener su conducción más segura.
- Sistema de aviso de cambio de carril (LDWS): Conducir somnoliento o distraído aumenta considerablemente la probabilidad de sufrir un accidente en la carretera. El LDWS avisará al conductor cuando el vehículo se salga del carril a una velocidad superior a 50 km/h.
- Sistema de advertencia de colisión frontal (FCWS): los accidentes se pueden evitar manteniendo una distancia segura con el vehículo que circula delante de usted. El sistema de advertencia de seguridad vial calcula la distancia en tiempo real entre su vehículo y el vehículo que circula delante de usted, mientras conduce a más de 30 km/h en autopistas o a menos de 30 km/h en una ciudad concurrida y emite una advertencia temprana de 3 niveles al conductor según el peligro de colisión.
- Grabación en bucle: las grabaciones nuevas sobrescribirán automáticamente las grabaciones más antiguas cuando la tarjeta de memoria esté llena, pero los videos bloqueados estarán a salvo de ser sobrescritos.
- Lente súper gran angular de alta resolución de 170 °A+, cubre un rango de visión mucho más amplio, brindando detalles adicionales al video y proporcionándole evidencia importante y confiable.
- Sensor G: cuando el coche detecta una colisión, activa inmediatamente el registro de bloqueo.
Presupuesto:
- Sensores de imagen: sensor de color de 1/4"
- Sistema de TV: NTSC predeterminado y solicitud PAL
- Iluminación mínima:<0,5
- AGC:Auto
- BLC:Auto
- Balance de blancos: automático
- Clase de impermeabilidad: IP 66
- Píxeles efectivos: 580 x 540
- Resolución: 420 líneas de TV
- Salida de vídeo: 1,0 Vp-p, 75
- Obturador electrónico: 1/60 (NTSC) - 1/10000S
- Relación señal/ruido: mejor que 48 db
- Ángulo de la lente: 170°
- Temperatura de funcionamiento: -20 °C + 80 °C
- Humedad de trabajo:RH95%
- Temperatura de almacenamiento: -30 °C ~ +80 °C
- Potencia de trabajo (DCV): 12 V
Installation costs & Locations
Please see our installation costs for all the products that are able to be installed by our team of talented and experienced engineers. Please note that these also do apply to products not purchased from us. If you would like a home installation, please refer to the extra call-out fee found below.
Android Screens & Carplay Boxes
Product |
Base Price |
Regular Car |
Manual Car |
Convertible/Estate/SUV |
Manual Convertible/Estate/SUV |
---|---|---|---|---|---|
Android Screen |
£110 |
£110 |
£110 |
£110 |
£110 |
Android Screen + Reverse Camera |
£160 |
£160 |
£200 |
£200 |
£240 |
Android Screen (Cutting into Dashboard) |
£300 |
£300 |
£300 |
£300 |
£300 |
Android Screen (Cutting) + Reverse Camera |
£360 |
£360 |
£400 |
£400 |
£440 |
Carplay Box |
£120 |
£120 |
£120 |
£120 |
£120 |
Carplay Box (Motherboard) |
£160 |
£160 |
£160 |
£160 |
£160 |
Carplay Box + Reverse Camera |
£160 |
£160 |
£200 |
£200 |
£240 |
Carplay Box (Motherboard) + Reverse Camera |
£200 |
£200 |
£240 |
£250 |
£290 |
Radios
Product |
Base Price |
Regular Car |
Manual Car |
Convertible/Estate/SUV |
Manual Convertible/Estate/SUV |
---|---|---|---|---|---|
1 DIN radio |
£65 |
£65 |
£65 |
£65 |
£65 |
1 DIN radio + Reverse Camera |
£105 |
£105 |
£145 |
£145 |
£185 |
Accessories
Product |
Base Price |
Regular Car |
Convertible/Estate/SUV |
---|---|---|---|
Mirror Reverse Camera Kit (Half/Full opening boot) |
£120/£160 |
£120/£160 |
£160/£160 |
Reverse Camera (must have a compatible host) |
£120 |
£120 |
£160 |
Front Dashcam (USB/Hardwired) |
£40/£60 |
£40/£60 |
£40/£60 |
Front & Rear Dashcams (Half/Full opening boot) |
£120/£160 |
£120/£160 |
£120/£160 |
Ambient/Footwell Lighting |
£400/£500 |
£400/£500 |
£400/£500 |
Parking Sensors (Rear) |
£150-£300 |
£150-£300 |
£200-£400 |
Parking Sensors (Front) |
£200-£400 |
£200-£400 |
£300-£500 |
Car DSP Amplifier (must have compatible host) |
£40 |
£40 |
£40 |
If we are removing a previously installed device from another company before installing the new product, there may be additional charges.
If you are installing a device into a Van/Lorry/HGV, please contact our customer support for installation prices.
Vans and other larger vehicles will have a custom cost for reverse camera installations based on engineers evaluation
Exterior Lighting
Product |
Base Price |
---|---|
Rear Lights |
£150+ |
Front Lights |
£300+ |
Call-out Fee
This cost will be added to any of the costs found above including Ambient Lighting.
70p/mile both ways from our closest engineer* to your location (+£20 if the route involves going through Central London/high congestion areas)
Minimum travel cost is £10
e.g. East London Base to SE1 3BT is 11.9miles x 2 (for return) = 23.8 miles, so price of fuel would be 23.8 miles x 70p = £16.66
*Please be advised that not all locations have an engineer present so check with us before confirming.
Classic/Performance/Exotic Cars
Please be advised if your car falls into this category, you will be given a custom charge for your car based on our head engineers evaluation as they will be accompanying the local engineer for the job. For more information, please contact us.
Terms & Conditions
- Installation and travel cost WILL NOT be included on the sale of the product (excluding Ambient Lighting). This will be paid on the day of the installation after job is complete. The installation date will be agreed with you and the assigned engineer during a call or text.
- Total installation cost and the call-out fee will be agreed with you after your order is placed with our sales agent and will be added to your receipt once paid. We will contact you after order is placed.
- You will have the option to pay the installation cost via Cash, BACS Transfer or Card Machine (credit cards may have small fee).
- You can cancel our installation service if you have accidently selected it on your order, you will not be charged. Please let us know via email or message as soon as possible.
- While we do install kits not bought from us, please be aware you will not be covered under our warranty if the kit is not compatible and/or is not able to be installed correctly. In either case, the fee will still need to be paid to our engineer and any troubleshooting issues not directly related to the installation process will be taken up with the manufacturer/seller of your kit.
When in doubt about any of this information, please do not hesitate to contact us and we will guide you through the process.
